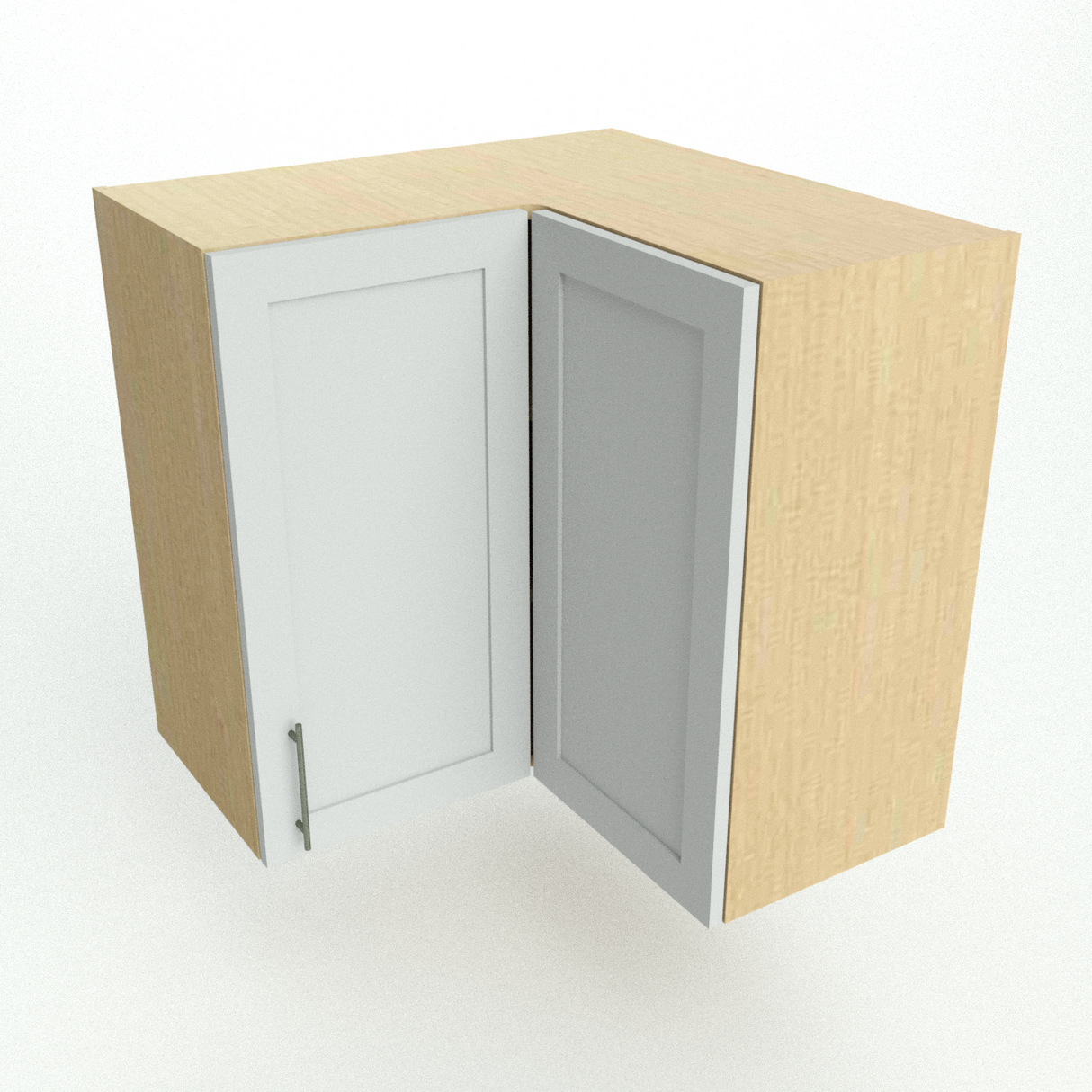

Wall Cabinet - L Corner

Description

Order an L-Corner Wall Cabinet with a door from the Frameless Cabinet line. All our cabinets at MKE Cabinetry are custom - you choose the size, door, material and finish.

General Sizing Tips & Info
  • Boxes are 3/4" birch plywood
  • Cabinet full depth = cabinet box + bumper (⅛”) + door thickness (¾“ or ⅞”)
  • Interior depth = cabinet box -1"
  • Width always includes the finished ends (not fillers)

Product Specific Tips
  • The two doors are hinged together and open to one side of the cabinet.
  • Avoid placing this cabinet next to a range hood or deeper cabinet that may restrict the door from fully opening.
  • If your door has a bevel or curved outside corner edge (Davidson, Callahan, Domes, Sconnie & Tosa) the gap between the two doors will appear larger.
  • Choose a “Hidden Lightrail” on all wall cabinets if you plan to install under cabinet lighting. This will conceal the electrical lighting behind the cabinet door. The standard space for lighting underneath the bottom cabinet is 1 5/8".
  • Select a Wall Cabinet with “No Bottom” for instances where you want the cabinet to sit on the countertop and want to see the exposed countertop.

Wall Cabinet Details
  • Measuring Tip:  Cabinet Height = Ceiling height - crown installed height - 1/2” reveal (crown carrier) - 54”
  • Recommended depth of an upper wall cabinet box: 14"
  • Crown carrier included if you order crown molding
  • Most cabinets have Bottom Style options available
  • Interior options available

Door Details
  • Maximum Door Width: 24”
  • Maximum Door Height: 72”
  • Soft Close Doors
  • Glass & Mullions available on select styles
  • Door Specifications
  • Door Styles
  • Finishes
  • All doors taller than 48” require a midrail for stability. If you elect to not have a midrail, your Door Warranty will be voided.
